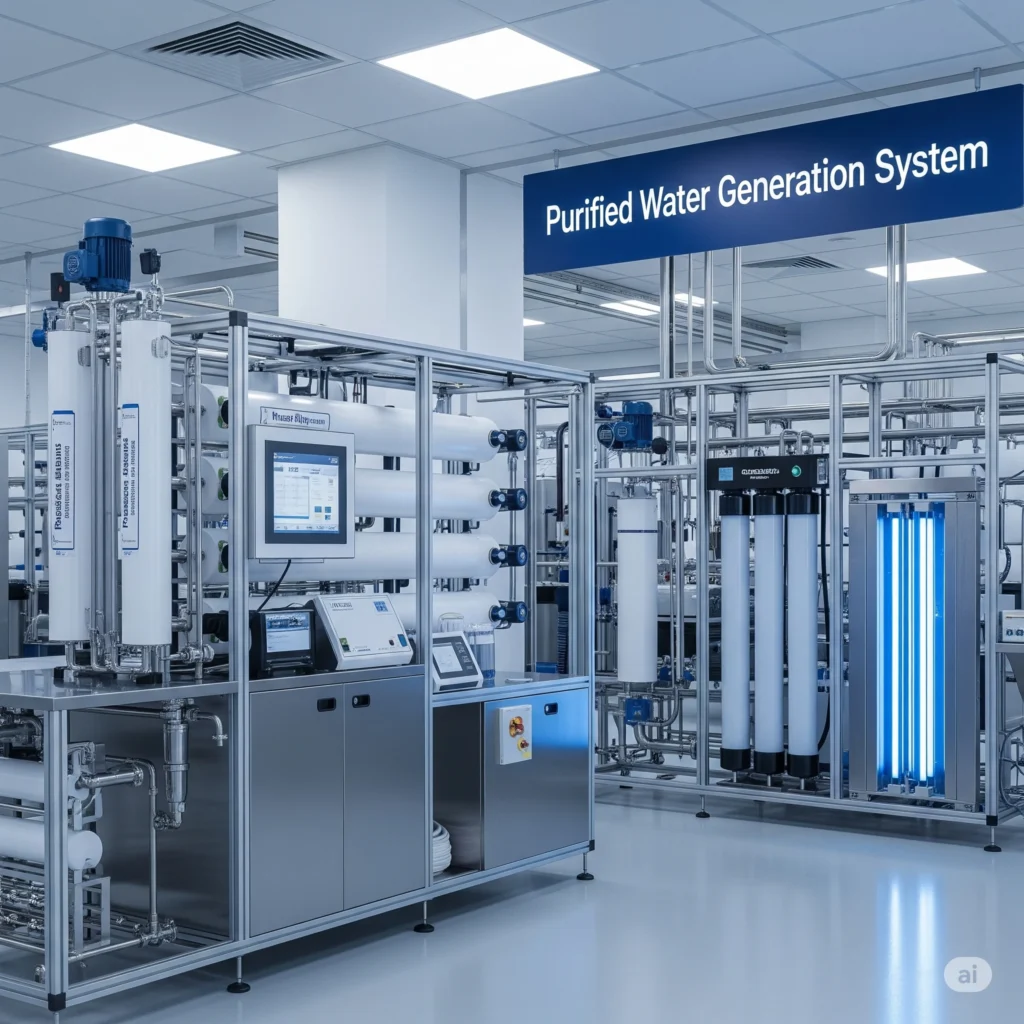

Water is more than just a basic utility in pharmaceutical manufacturing—it’s a critical raw material whose quality directly impacts patient safety and product efficacy. A robust purified water generation system removes bacteria, endotoxins, dissolved solids, and organic contaminants to produce both Purified Water (PW) and Water for Injection (WFI). Whether you’re formulating tablets, filling injectables, or cleaning equipment, understanding each step of your pharmaceutical water purification system is essential for compliance with USP, EP, JP, and WHO monographs.
Why High‑Grade Water Matters
Every milliliter of PW or WFI can make the difference between a safe therapy and a life‑threatening contamination event. Municipal drinking water may meet EPA or WHO standards, but it still contains residual chlorine, dissolved minerals, and trace organics. A pharmaceutical water purification system elevates tap water through multiple barriers:
Removal of suspended solids and turbidity
Control of microbial load and biofilms
Reduction of total organic carbon (TOC)
Elimination of endotoxins for parenteral applications
In particular, Water for Injection (WFI) demands sterility and pyrogen‑free status, with endotoxin levels below 0.25 EU/mL and no more than 10 CFU per 100 mL. These rigorous specifications ensure that injectable drugs, vaccines, and biologics remain uncompromised from bench to bedside.
Understanding Water Quality Grades
Pharmaceutical facilities typically work with three main grades of water:
Potable Water comes from the local supply and meets drinking‑water criteria, but it often carries chlorine, minerals, and microbial populations that are unacceptable for pharmaceutical use.
Purified Water (PW) is generated by reverse osmosis (RO), electro‑deionization (EDI), or distillation to meet pharmacopeial limits for conductivity, TOC (< 500 ppb), and bioburden (≤ 100 CFU/100 mL). PW serves for cleaning, buffer preparation, and non‑parenteral formulations.
Water for Injection (WFI) is a subset of PW that undergoes additional distillation or 0.2 µm filtration and sterilization. WFI is stored in a heated loop (80–85 °C) to prevent microbial growth and distributed aseptically for drug reconstitution and IV‐line flushing.
Only a dedicated purified water generation system can reliably deliver both PW and WFI quality streams, each tailored to specific downstream requirements.
Pre‑Treatment: Laying the Foundation
Before high‑tech membranes or distillation, raw water must be pre‑conditioned to protect equipment and maximize efficiency:
Chlorination – Sodium hypochlorite (NaOCl) dosing kills bulk microorganisms and biofilm in feed lines.
Multigrade and Sand Filtration – Removes suspended solids, silt, and turbidity to < 1 NTU.
Activated Carbon De‑chlorination – Adsorbs residual chlorine/chloramine and organics that can foul RO membranes.
Water Softening – Ion‑exchange removes hardness ions (Ca²⁺, Mg²⁺) to prevent scale formation in boilers and membranes.
Ultrafiltration (UF) – Provides an additional barrier against bacteria and high‑molecular‑weight compounds.
Chemical Dosing – Anti‑scale agents, pH correction, and antifoam may be added to optimize downstream performance.
This multi‑barrier approach aligns with best practices recommended by industry leaders and ensures that your pharmaceutical water purification system begins with the cleanest possible feed water.
Primary Purification: RO, EDI and UV
Once pre‑treated, water moves through the heart of any modern system:
Reverse Osmosis (RO) rejects > 99% of dissolved ions, bacteria, and organics. High‑stage RO (HSRO) designs prioritize recovery rates, while counter‑current RO (CSRO) offers enhanced water savings.
Electro‑Deionization (EDI) continuously regenerates ion‑exchange resins using electricity, delivering consistent resistivity and reducing chemical regenerants.
Ultraviolet (UV) Disinfection at 254 nm degrades trace organics and provides a secondary microbial kill step without chemicals.
Together, RO, EDI, and UV create a chemical‑free, energy‑efficient pathway to Purified Water that meets pharmacopeial benchmarks for conductivity (< 1.3 µS/cm) and TOC.
WFI Production: Distillation and Hot‑Loop Distribution
Generating Water for Injection requires distillation technologies capable of stripping endotoxins and volatile organics:
Multi‑Effect Distillation uses successive evaporation and condensation stages to maximize energy efficiency.
Vapor‑Compression Distillation recycles latent heat for reduced utility costs.
Post‑distillation, WFI is stored and circulated in a heated loop (80–85 °C) constructed of 316L stainless steel or USP‑grade polymer to inhibit microbial growth. Aseptic sampling ports and dead‑leg minimization guarantee that every drop of WFI remains sterile until point of use.
Process Flow Summary
Raw Water → 2. Pretreatment (Chlorination → Filtration → Softening → UF) → 3. Primary Purification (RO → EDI → UV) → 4. PW Storage Loop (45–55 °C) → 5. WFI Distillation → 6. WFI Hot‑Loop (80–85 °C) → 7. Aseptic Distribution → 8. Quality Control (TOC, CFU, endotoxins).
Key Design Considerations
Designing a reliable purified water generation system requires balancing capacity, quality, and compliance:
Flow Rate & Demand: Size RO trains and distillation units for peak and average usage, including CIP (clean‑in‑place) volumes.
Raw Water Profile: Analyze TDS, SDI, microbial load, and oxidation potential to customize pretreatment.
Loop Integrity: Closed recirculation with sanitary welds, automated cleaning cycles, and continuous conductivity/TOC monitoring.
Materials & Piping: 316L stainless steel for WFI, with passivation and surface finishes that resist biofilm formation.
Redundancy: Parallel RO modules, standby pumps, and backup generators to ensure uninterrupted PW/WFI supply.
Regulatory Compliance and Validation
All pharmaceutical water systems must meet regional and international standards:
USP <1231>: Defines microbial and endotoxin limits for PW and WFI.
EP 5.1.2 & 0169: Details water quality and system design.
JP17: Outlines procedures for water for injection.
WHO Technical Report 970: Provides guidelines on water for pharmaceutical use.
Validation follows a three‑phase approach:
Installation Qualification (IQ) – Verify equipment matches design documentation.
Operational Qualification (OQ) – Test performance under worst‑case operating conditions.
Performance Qualification (PQ) – Demonstrate consistent water quality over time.
Routine monitoring—online sensors for conductivity and TOC, weekly microbial and endotoxin testing—ensures continued compliance.
Innovations Driving Efficiency
Advances in purification technology and digital monitoring are reshaping the landscape:
Continuous Hybrid Systems combine low‑pressure distillation with membranes, offering flexible PW/WFI production on demand.
Real‑Time Analytics use inline TOC probes, ATP bioluminescence, and conductivity meters to detect deviations instantly.
Quality‑by‑Design (QbD) methodologies apply risk assessments and statistical models to pinpoint critical control points, reducing end‑product testing and accelerating batch release.
These innovations not only enhance patient safety but also lower operating costs and environmental impacts.
Choosing the Right System Provider
Partner with specialists who bring turnkey expertise:
Engineering & Design: System sizing, Piping & Instrumentation Diagrams (P&IDs), and 3D layouts.
Validation Support: Comprehensive IQ/OQ/PQ protocols and documentation.
Onsite Testing Services: Microbial cultures, LAL endotoxin assays, TOC and conductivity analysis.
After‑Sales Service: Scheduled maintenance contracts, spare‑parts stocking, and 24/7 technical support.
A trusted supplier ensures your purified water generation system operates at peak performance and remains fully compliant with regulatory requirements.
Conclusion
A state‑of‑the‑art purified water generation system is the backbone of any pharmaceutical operation. From raw water pretreatment to WFI distillation and hot‑loop distribution, every stage must be engineered, validated, and monitored to deliver water that meets the most stringent global standards. By understanding the classifications, process flows, and design considerations—and by partnering with a knowledgeable provider—you can safeguard drug quality, ensure patient safety, and maintain regulatory compliance every day
